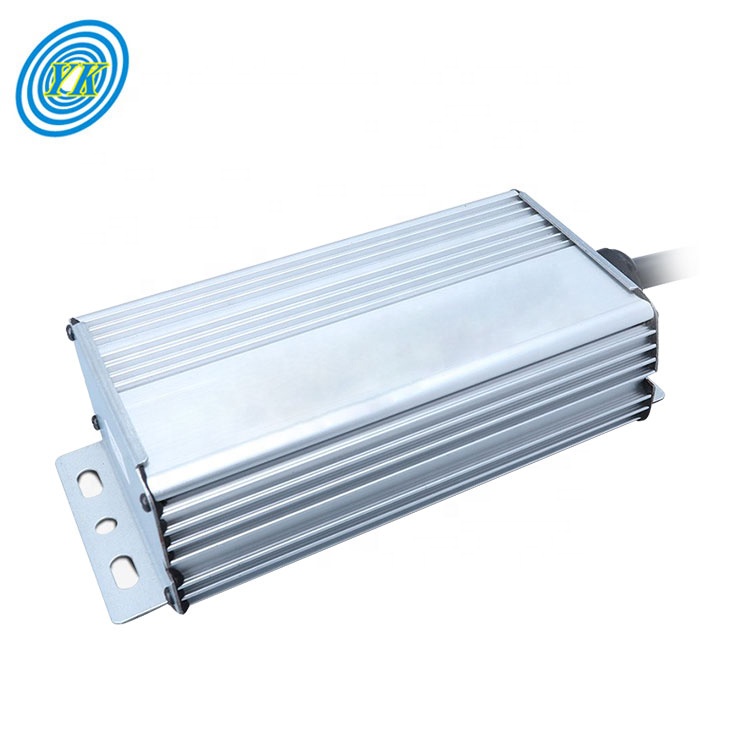

Isolated 72v 60v 48v to 24v Dc to Dc Step Down Buck Converter
Product Description

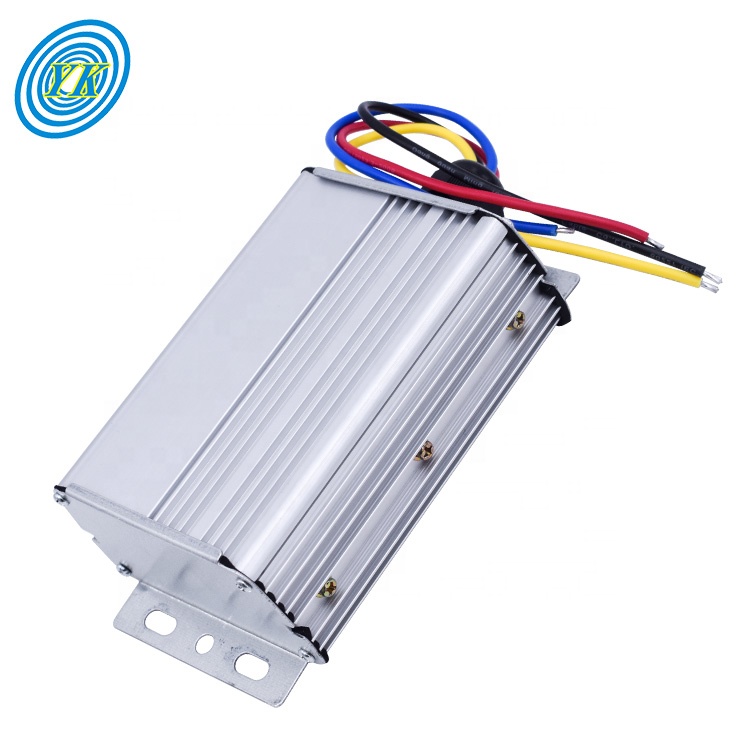

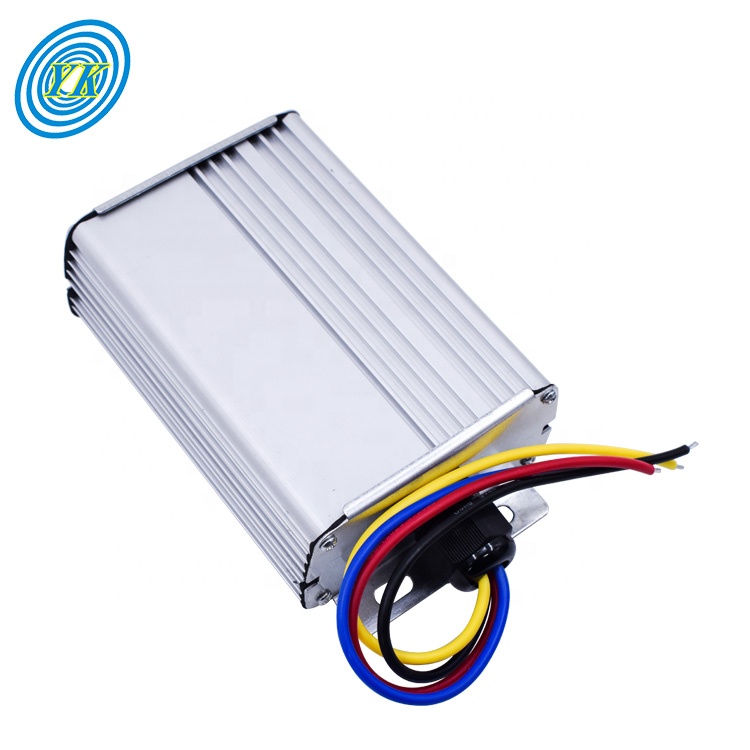

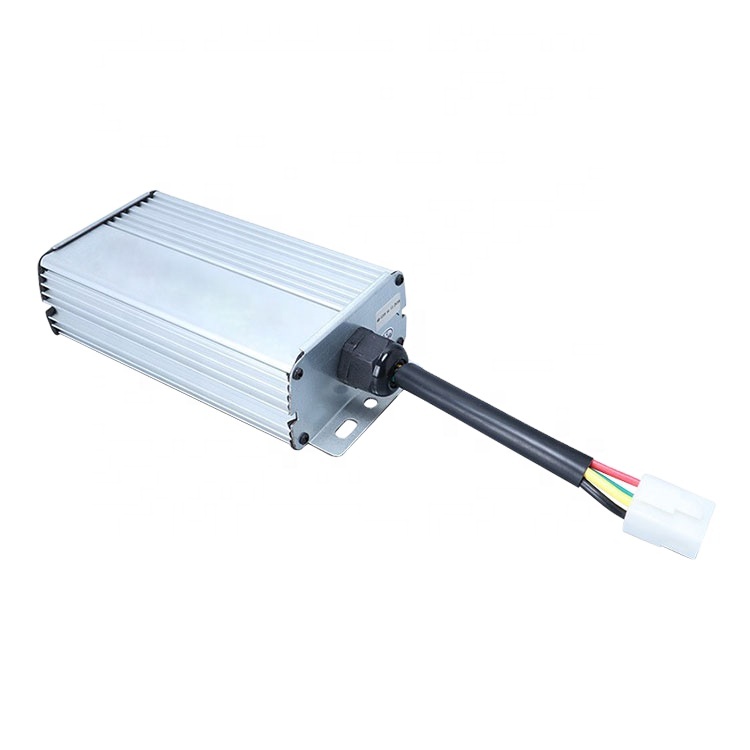

Details Images
Product Parameters
| Brand | YUCOO |
| Model / Name | YK-DD40-135S2405 40-135VDC Input to 24VDC 5A Isolated DC-DC Converter |
| Input voltage | 40~135Vdc |
| Output voltage | 24.5±0.3V |
| Output current | 0~5A |
| Support max load operation in long-term | 0-100W |
| Maximum power | 120W |
| Voltage stability | <1.5% |
| Load stability | <1.5% |
| Insulation resistance | >50MΩ between input and output >50MΩ between input and housing >50MΩ between output and case |
| Dimension | 150*86*46 mm 178*86*46mm (With install hole) |
| Weight | 455g |
Customers Comments
Company Profile
Frequently Asked Questions
What is the input voltage range of this DC-DC converter?
This unit supports a wide DC input voltage range from 40Vdc up to 135Vdc, making it adaptable to various industrial power supply sources.
What is the maximum output power under continuous operation?
The converter provides an output voltage of 24.5V with an output current of 0-5A, handling up to 100W for continuous long-term load operation and a peak maximum power of 120W.
Is this power converter fully isolated?
Yes, it features an isolated topology with an insulation resistance exceeding 50MΩ between input-to-output, input-to-housing, and output-to-case.
What are the mounting dimensions and weight?
The physical dimensions are 150*86*46 mm (178*86*46 mm including installation holes) and it has an approximate net weight of 455g.
How stable is the voltage and load output?
Both the voltage stability and load stability are tightly regulated within <1.5%, ensuring steady and reliable performance under varying circuit conditions.
