Precision Power Modules for Industrial & Test Environments
Verified switched-mode power supplies (SMPS), galvanically isolated DC-DC regulators, and heavy-duty inverters engineered with low harmonic distortion (THD < 3%), ultra-fast transient response, and ruggedized packaging.
Strategic AC/DC Rectification Architectures for Daejeon's High-Tech R&D Hub
Daejeon stands at the heart of South Korea’s national innovation strategy, housing the renowned Daedeok Innopolis—a collaborative ecosystem encompassing KAIST (Korea Advanced Institute of Science and Technology), KARI (Korea Aerospace Research Institute), ETRI (Electronics and Telecommunications Research Institute), and cutting-edge defense contractors. For instrumentation engineers, procurement executives, and system integrators operating within Daejeon, power rectification is far more than a commodity AC to DC conversion stage. It is the critical operational bedrock defining signal-to-noise ratio, mean time between failures (MTBF), energy efficiency, and thermal stability in sensitive electronics.
In modern high-frequency SMPS (Switched-Mode Power Supply) and modular rectifier design, converting utility AC (typically standard South Korean 220V single-phase or 380V three-phase 60Hz) to a stable, galvanic-isolated DC bus (such as 12V, 24V, 48V, or high-voltage DC 400V+) demands precision active Power Factor Correction (PFC) circuitry. Varnix Technology Co., Ltd., leveraging over 23 years of specialized manufacturing experience since 2003, supplies robust rectifier modules, embedded rack systems, and precision DC power supplies configured specifically to withstand demanding laboratory cycles, severe industrial harmonics, and tight electromagnetic interference (EMI) boundaries.
Whether configuring an N+1 redundant DC microgrid for continuous data acquisition, sourcing a high-power 1000A plating rectifier for electro-chemical deposition, or integrating isolated step-down buck modules for automotive autonomy testbeds, understanding localized grid stability, environmental resilience, and communication interfaces (RS485 Modbus, CAN Bus, SNMP) is essential for engineering procurement teams across the Yuseong and Daedeok districts.
High-Reliability Power Ecosystems Across Daejeon Industry
Explore how our industrial AC/DC rectifiers, embedded power shelves, and high-frequency power supplies are deployed across strategic industrial clusters in the Daejeon metropolitan area.
Daedeok Innopolis Scientific R&D & KAIST Labs
Government institutes, semiconductor spinoffs, and university laboratories require ultra-low ripple (<10mVp-p), high slew-rate programmable DC power supplies and rectifiers to drive particle diagnostics, quantum sensor test arrays, and laser diode drivers without noise interference.
Aerospace & Defense Simulation (KARI & ADD)
Aerospace telemetry, defense radar transceivers, and satellite avionics test systems demand ruggedized wide-input DC-DC and modular AC/DC conversion stages. High galvanic isolation (up to 3000VAC) and wide thermal operating windows (-40°C to +70°C) ensure faultless endurance test execution.
Next-Gen Telecom Infrastructure & 5G Core Stations
With Daejeon serving as a central communications node connecting Seoul with southern industrial regions, our 19-inch 1U/2U rack-mounted 48VDC embedded rectifier systems provide redundant power feeding backhaul transmission racks and edge compute server stacks.
Daejeon 1st & 2nd Industrial Complexes: Plating & Surface Treatment
High-precision electroplating, hard anodizing, and electrolysis processes in precision component fabrication require constant current/constant voltage (CC/CV) switch-mode rectifiers delivering up to 1000A with precise duty cycle pulse modulation to maximize coating density.
Hydrogen & Clean Fuel Cell Microgrid Research
Aligned with South Korea’s Green New Deal and localized hydrogen infrastructure initiatives in Chungcheongnam-do, our bi-directional rectifiers and buck-boost power stages interface electrolyzers, fuel cell battery stacks, and utility grids with maximum efficiency.
Autonomous Mobile Robotics (AMR) & EV Battery Testing
High-capacity smart chargers and isolated step-down converters (48V/72V to 12V/24V) support warehouse AMRs, logistics AGVs, and automated testing fixtures running throughout Daejeon’s intermodal transit and logistics corridors.
Technological Evolutions Shaping the Daejeon Power Conversion Market
Korean industrial procurement is undergoing rapid modernization. Sourcing managers require hardware compliant with modern solid-state wide bandgap architectures, stringent KC safety benchmarks, and intelligent telemetry.
1. Transition to Gallium Nitride (GaN) and Silicon Carbide (SiC) MOSFETs
Traditional silicon-based rectifiers struggle with switching loss at frequencies above 100kHz. Varnix designs integrate SiC Schottky barrier diodes and GaN power switches, elevating switching frequencies up to 500kHz. This shrinks planar magnetic transformers by 40% while pushing total system efficiency past 96%, dramatically lowering operational thermal dissipation in compact Daejeon server enclosures.
2. Strict KC EMC Compliance & Korean 60Hz Grid Optimization
Equipment deployed in South Korea operates at a nominal grid frequency of 60Hz. Poorly filtered input stages trigger harmonic cross-talk on factory circuits. Varnix builds customized EMC stages with multi-stage common-mode chokes, X/Y suppression caps, and transient voltage suppressors, fully complying with Korea Certification (KC), CE, and FCC Part 15 Class A/B requirements.
3. DSP-Controlled Dynamic Load Response & Digital Twin Telemetry
Modern R&D laboratories require millisecond dynamic tracking during abrupt load transitions (e.g., pulsing laser arrays or transient motor stalls). Our digital signal processor (DSP) controlled rectifiers continuously balance phase currents, calibrate soft-start ramps, and broadcast telemetry via isolated RS-485 Modbus or CAN 2.0B protocols to central SCADA systems.
4. Extreme Density Modular Hot-Swapping
Unscheduled downtime is non-negotiable for R&D institutes running 90-day simulation tests. Modular rack rectifiers featuring blind-mate rear connectors allow technicians to replace individual 1kW–3kW power slices in under 60 seconds without de-energizing the main DC distribution rail, providing continuous N+1 fault tolerance.
Engineering Parameters: Selecting the Optimal Topology
Use this technical comparison matrix to cross-reference input voltage tolerance, harmonic control, cooling configurations, and ideal use cases across our rectifier and converter families.
| System Architecture | Input Voltage Window | Nominal Output DC | Peak Efficiency | Isolation Rating | Cooling / Form Factor | Target Daejeon Application |
|---|---|---|---|---|---|---|
| Embedded Telecom Rectifier System | 85V - 290V AC (Single/3-Phase) | 48V DC (Adjustable 42-58V) | 95.5% - 96.8% | 3000 VAC (Input/Output) | Forced Air, 19" 1U/2U Rack Shelf | ETRI 5G/6G communication testbeds, high-speed rail routing hubs |
| High-Power Plating Rectifier (SMPS) | 220V AC / 380V AC ± 15% | 0 - 12V / 24V (50A to 1000A) | 91.0% - 94.0% | 2000 VAC | Intelligent Fan / Optional Water-Cooled | Daejeon industrial surface coating, copper PCB micro-via electroplating |

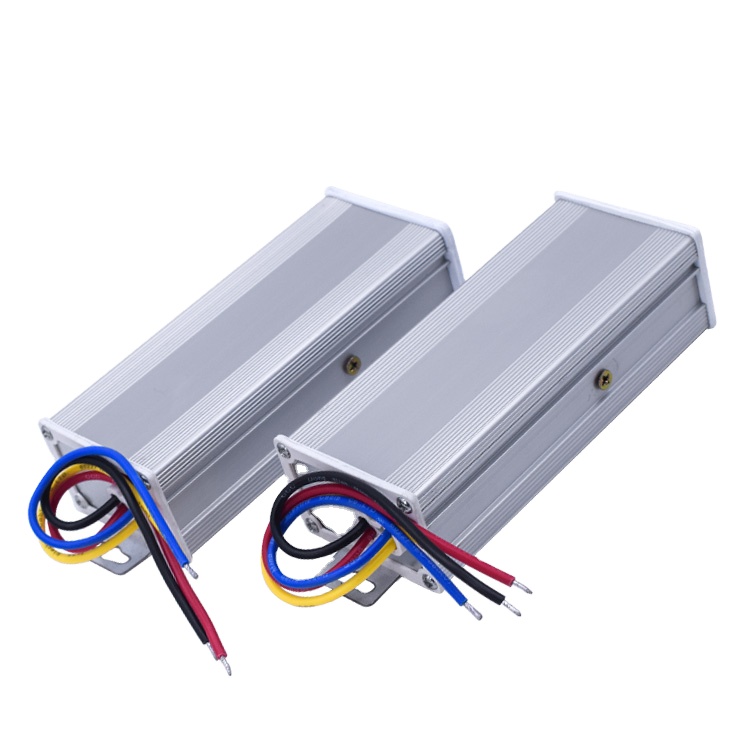

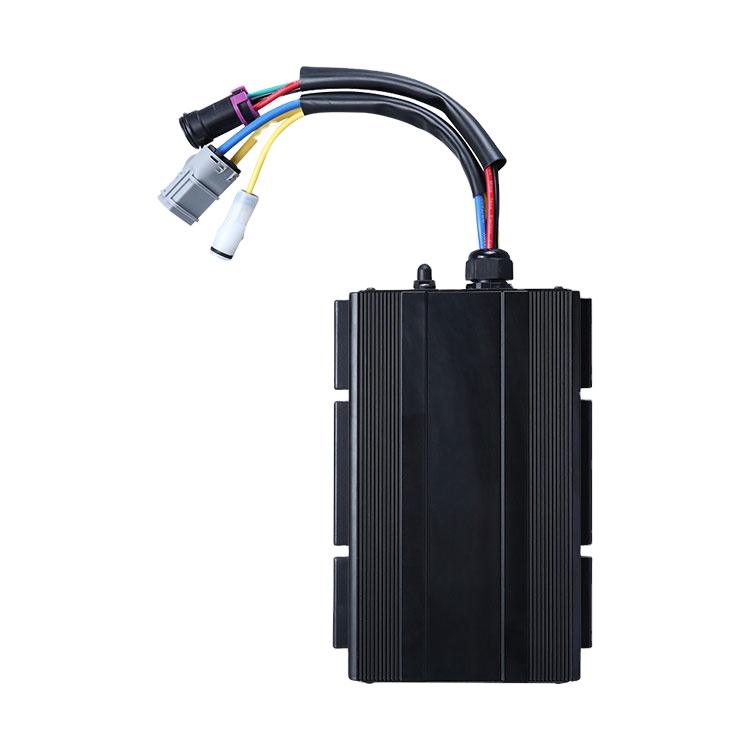

| Isolated DC-DC Buck/Boost Regulators | 36V - 135V DC Ultra-Wide | 12V, 24V, 48V Regulated | 92.0% - 94.5% | 1500 VDC Galvanic | Convection / Extruded Aluminum IP68 | Autonomous AGV battery rail conversion, aerospace sensor payloads |
| Programmable Laboratory DC Supply | 180V - 260V AC 50/60Hz | 0 - 30V / 600V (CV/CC Mode) | 90.0% - 93.5% | 2500 VAC | Thermostatically Controlled Low-Noise Fan | KAIST semiconductor characterization, sensor burn-in benches |

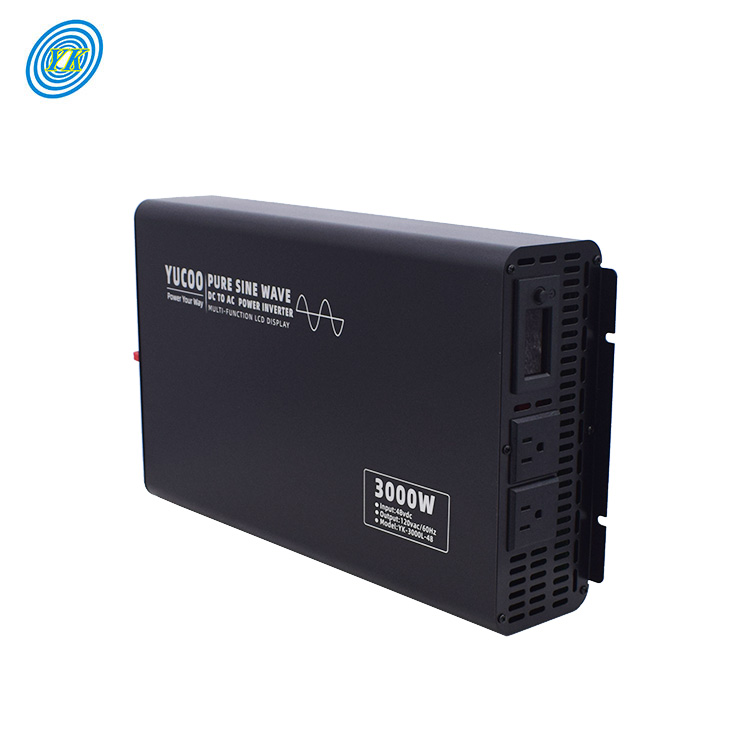

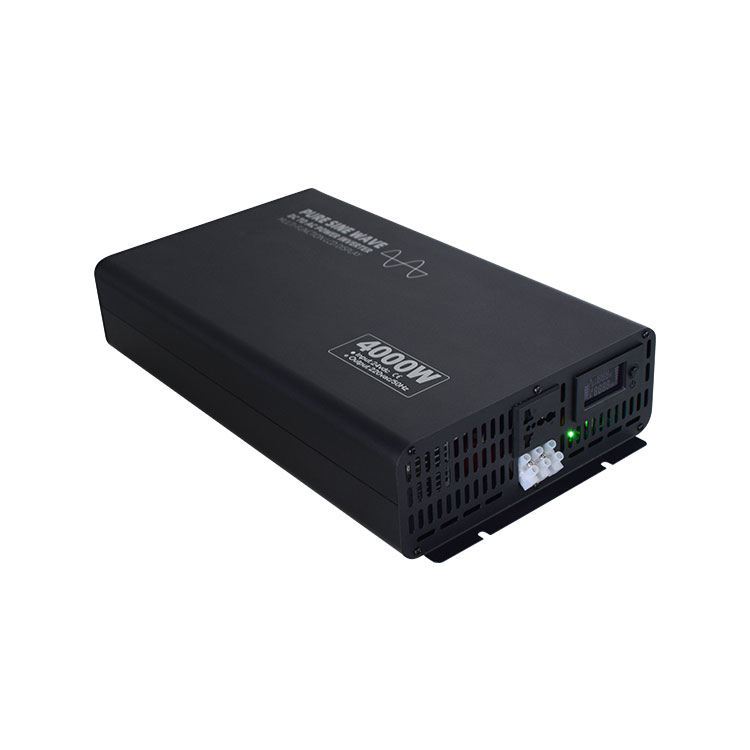

| Pure Sine Wave Inverter & DC Converter | 12V / 24V / 48V / 72V DC | 220V AC ± 3% (60Hz Pure Sine) | 92.5% - 95.0% | Fully Isolated In/Out | Aluminum Heat Sink + Fan Assist | Mobile research vehicles, remote environmental telemetry stations |
Why Daejeon Procurement Specialists Partner with Varnix
Originating from Guangdong, China, Varnix Technology Co., Ltd. combines rigorous factory-direct manufacturing control with international export excellence, audited on-site by SGS.
ISO 9001:2015 & SGS On-Site Verification
Our 1,229 m² production facility is audited by SGS Group. Every stage—from surface-mount automated component placement, manual precision through-hole soldering, to final curing—follows verified ISO 9001:2015 quality standards.
100% Comprehensive Burn-In Testing
Zero field defects is our standard. 100% of finished rectifiers, DC-DC converters, and inverters undergo 4 to 8 hours of continuous, full-load burn-in testing in elevated ambient temperature chambers, eliminating infant mortality risks.
OEM/ODM Engineering Agility
Do you need custom input/output voltages, conformal PCB coatings for harsh laboratory environments, specialized terminal blocks, or private-label branding? Our senior R&D engineers design, sample, and deliver custom units within rapid project cycles.
Rapid International Logistics & US Warehouse
We streamline air and ocean freight to Incheon and Busan ports with full Korean customs clearance documentation (DDP, CIF, FOB, EXW terms). In addition, selected standard modules are stocked in our overseas warehouse for accelerated cross-border dispatch.
Full Regulatory Certification (CE, RoHS, FCC)
Product series carry verified CE, RoHS, and FCC certifications. Test reports, component schematics, and MTBF reliability analyses (exceeding 150,000 hours per Telcordia SR-332) are available with every project tender or institutional audit.
24/7 Direct Engineering Consultation
No non-technical call centers. Inquiries from Daejeon system integrators and engineers connect directly to seasoned power hardware specialists capable of reviewing circuit schematics, thermal constraints, and fault scenarios in real-time.
Frequently Asked Questions for Sourcing Rectifiers in Daejeon
Key technical answers regarding Korean utility grid voltage compatibility, import certifications, MOQ, and customization requirements.
