Industrial Variable Power Supplies & Converters for Belize
Tested for rugged performance under 100% full-load burn-in conditions. Certified with CE, RoHS, and FCC protocols to guarantee total grid independence and marine reliability across Belize.

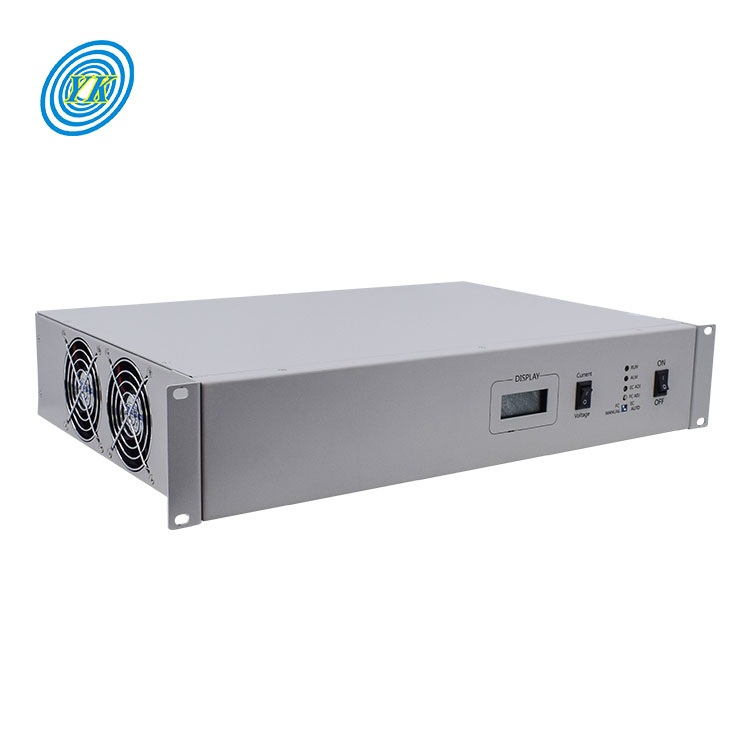

System Rectifier Power 110Vac to 24Vdc 10/20/30/40/50/60/80/100A Switching Power Supply
Ultra-reliable industrial modular rectifier converting 110VAC line input to regulated 24VDC for Belize utility rooms, automated substations, and battery arrays.
- Input Voltage110VAC ± 15%
- Output Current10A to 100A Option
- Cooling SystemForced Air Auto-Fan
Pure Sine Wave Power Inverter 12V 24V 48V to 110V 220V 300W–5000W Solar Inverter
Clean, low-THD pure sine wave AC inversion designed for sensitive eco-lodge refrigeration, satellite communications, and off-grid cayes in Belize.
- DC Input12V / 24V / 48V
- AC Output110V / 220V Pure Sine
- Surge Rating200% Peak 5 Seconds

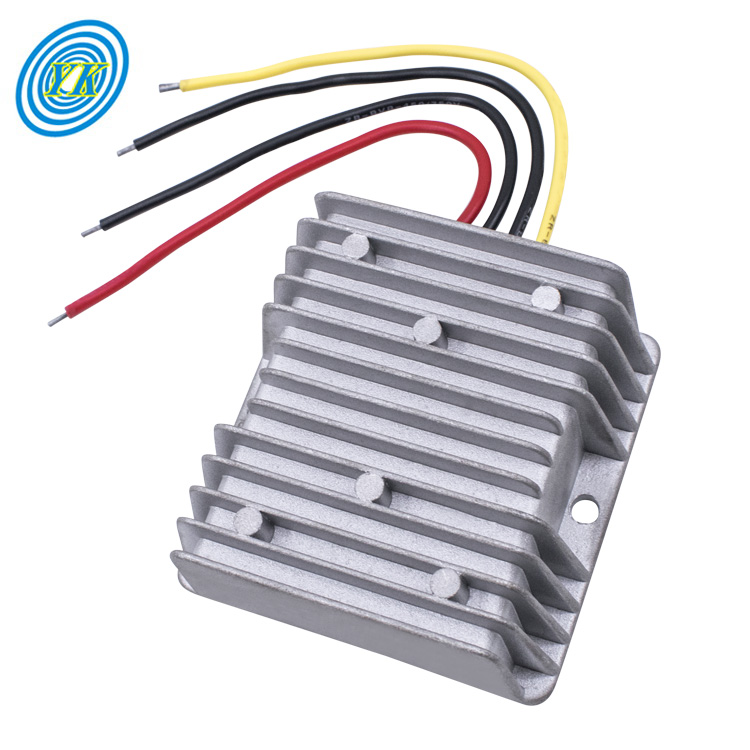

Buck & Boost 8-40V to 13.8V 5A Step-Up/Down Voltage DC-DC Converter
Automatic dual-action voltage stabilization providing steady 13.8V float for VHF radios and navigation equipment despite extreme engine cranking drops.
- Input Window8V–40V Wide Range
- Output Spec13.8VDC @ 5A (69W)
- Ingress RatingIP67 Cast Aluminum

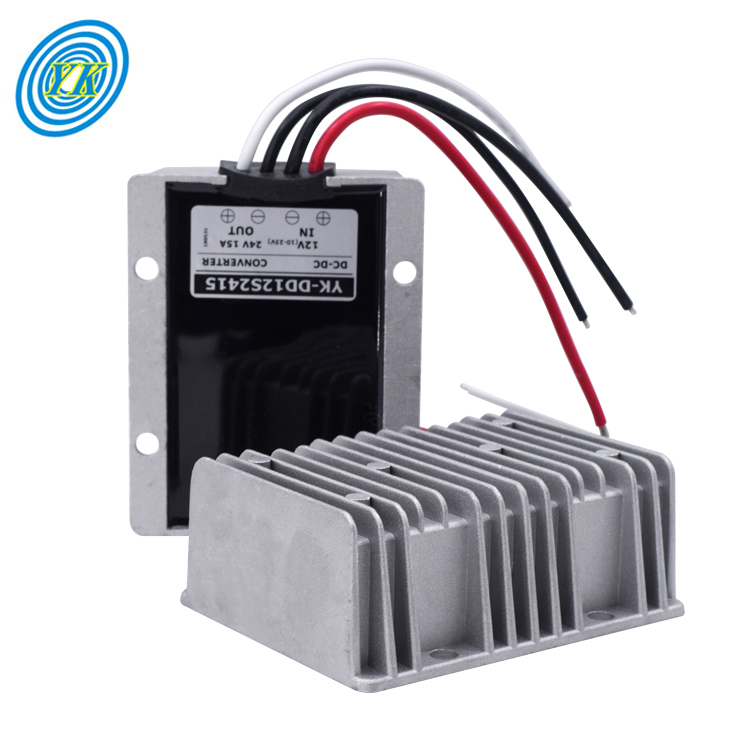

DC Voltage Stabilizer 12V 24V to 13.8V 20A Step-Up and Step-Down Converter
Heavy-duty 276W solid-state regulator for high-draw marine transceivers, agricultural sensors, and auxiliary battery banks operating in Belize coastal regions.
- Rated Amperage20 Amperes Max
- Conversion Eff.> 94% Efficiency
- Thermal ControlConvection Fin Case
DC-DC Voltage Converter 9-32VDC to 12VDC 12A 144W Step Up Down Converter
High-frequency automotive switching module maintaining rock-solid 12V output for fleet telematics and agricultural machines throughout Belize's Cayo District.
- Input Scope9V–32V DC Universal
- Regulated Output12V ± 1.5% @ 12A
- ProtectionsOVP, OCP, SCP, OTP

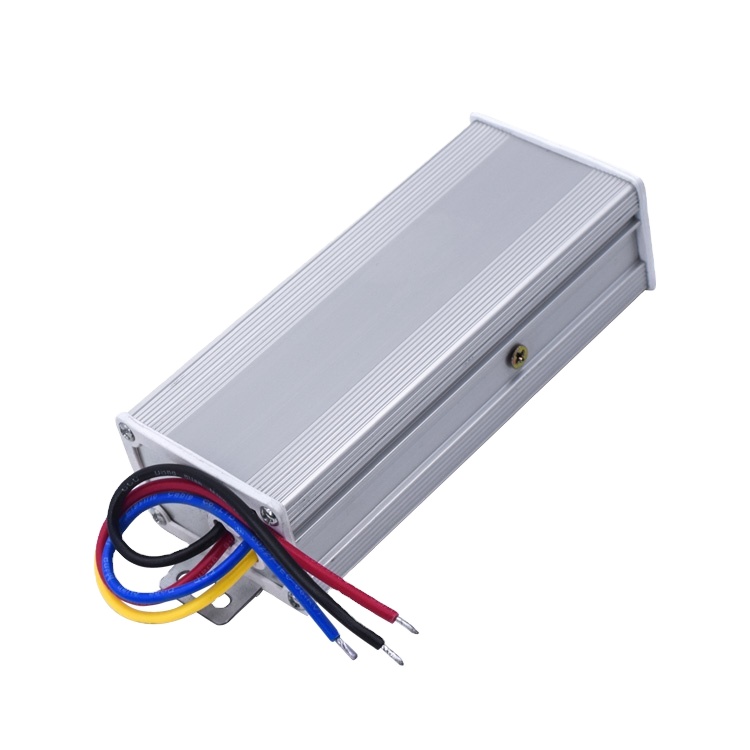

Isolated DC DC 48/60/72/84/96V Input 24V 2.5A Output Converter for Truck
Galvanically isolated power conditioner mitigating common ground loops and protecting industrial controls in logging, heavy logistics, and electric drives.
- Isolation Rating1500VDC Input/Output
- High-V Input48V to 96V Nominal
- ApplicationsHeavy Haulage / Industrial

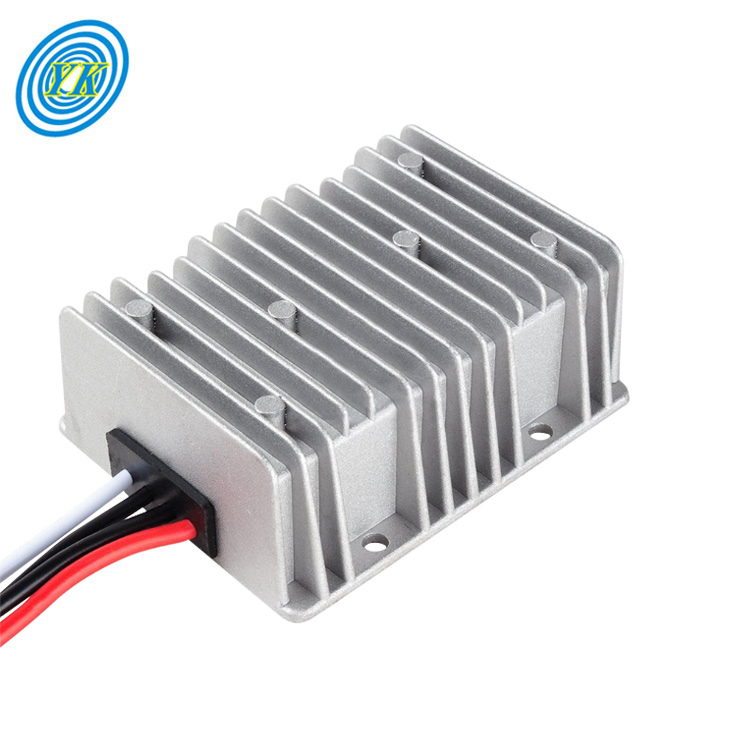

Buck-Boost Power Converter 8V-40V to 13.8V 15A DC Voltage Regulator
Encapsulated waterproof regulator engineered for off-grid telecommunication relay masts and coastal weather stations exposed to severe salt fog.
- Input Dynamic8V–40V Continuous
- Capacity13.8V @ 15A (207W)
- Epoxy Sealing100% Anti-Humidity
Car Power Inverter DC 12V 24V to AC 110V 220V 300W Pure Sine Wave for RV/Marine
Compact portable pure sine wave power unit with fast USB ports, built for safari tour operations, research boats, and work trucks across Belize's remote reserves.
- Dual Input12V / 24V Auto-Select
- AC Outlet110V 60Hz or 220V 50Hz
- Form FactorCompact Anodized Case
Engineering Power Conversion for Belize’s Tropical Climate & Grid Dynamics
A technical guide on solving power stability challenges in Central America through variable DC power architectures and conformal power conversion modules.
Purchasing variable power supplies and power electronics for commercial or industrial deployment in Belize requires balancing extreme tropical exposure, off-grid isolation, and electrical line variance. Belize's national grid, overseen primarily by Belize Electricity Limited (BEL), operates nominal service at 110VAC/220VAC at 60 Hz. However, end-of-line users in coastal municipalities, cayes such as Ambergris Caye and Caye Caulker, and interior agricultural estates in Toledo and Cayo frequently experience voltage sags up to ±22%, high harmonic distortions, and sudden brownout events. Without precision step-up/step-down regulation and wide-input tolerance, mission-critical systems encounter premature board degradation.
Furthermore, Belize presents ambient challenges characterized by sustained relative humidity reaching 85% to 95%, intense ambient thermal baselines (32°C to 38°C), and corrosive airborne saline aerosols blown across the Mesoamerican Barrier Reef. Standard laboratory-grade variable power supplies fail prematurely due to galvanic corrosion and tracking currents across PCB traces. To deliver an exceptional MTBF (Mean Time Between Failures) above 50,000 hours, Varnix engineers implement conformal anti-fungal silicone coatings, gold-flashed contact terminals, and thermally conductive epoxy encapsulation across all buck-boost topologies and modular rectifiers.
Off-Grid Hospitality & Eco-Resorts
Cayo District jungle reserves and Caribbean cayes run 100% autonomous microgrids. Our pure sine wave solar inverters (12V/24V/48V up to 5kW) and 24V-to-12V buck converters supply smooth, unclipped power to deep-well pumps, sub-zero food refrigeration, and Starlink satellite terminals without harmonic noise or buzzing.
Marine & Commercial Fishing Fleets
From Belize City ports to Placencia boat basins, vessels demand rock-solid 13.8VDC floats for Garmin navigation, depth sonars, and Class-A VHF transmitters. Our IP67 buck-boost converters smooth out brutal engine-start voltage drops from 8V back up to an uninterrupted 13.8VDC output.
Telecommunications & Remote Repeaters
Cellular nodes across the Maya Mountains depend on 48VDC embedded rack rectifier systems. With integrated automatic temperature-compensated charging, smart battery cutoff, and galvanic isolation, our variable power hardware protects critical communication lines during hurricane season.
| Operating Application in Belize | Recommended Varnix Topology | Critical Engineering Input / Output | Local Environmental Protection |
|---|---|---|---|
| Caye Solar Microgrid Storage | Pure Sine Wave Inverter 3kW–5kW | 48VDC Battery → 110V/220VAC 60Hz | Conformal PCB coating, thermal throttling |
| Offshore Marine Vessels | Buck-Boost 8V–40V to 13.8V Regulator | 12V/24V Engine Alternator → Stable 13.8V | IP67 Sealed die-cast aluminum enclosure |
| BTL / Smart Telecom Repeaters | Modular System Rectifier 110VAC to 48VDC | 85–264VAC Universal → 48VDC 50A–100A | 1500V Galvanic isolation, lightning surge arrest |
| Citrus & Banana Processing Automation | Isolated Step-Down DC-DC Converters | 48V/72V Plant Bus → 24VDC PLC Controls | Optocoupler isolation, surge suppression |
Emerging Energy & Power Supply Trends in Belize (2025–2030)
Analyzing the strategic shift toward off-grid autonomy, electrification, and resilient power electronics across Central America.
1. Decoupling from Unstable Line Feeds
High retail kilowatt-hour tariffs in Belize drive agricultural packing houses and eco-resorts toward captive solar-plus-storage. Demand is surging for high-efficiency variable switching DC power supplies capable of interfacing directly with 48V lithium-iron-phosphate (LiFePO4) battery banks without parasitic idle consumption.
2. Electrification of Marine & Tour Logistics
Eco-tourism initiatives around the barrier reef are accelerating conversion from 2-stroke outboards to electric tenders and solar catamaran charters. High-amperage, programmable variable power converters and isolated chargers are critical to service multi-voltage auxiliary networks safely under marine surveys.
3. Expansion of Distributed Rural Starlink Hubs
Remote communities and environmental research stations in the Toledo district utilize low-earth-orbit satellite internet. Varnix 12V/24V to 30V/48V step-up buck-boost regulators provide stable direct-DC power, avoiding the 25% efficiency penalty incurred by redundant DC-AC-DC inversions.
Direct Factory Engineering from Varnix Technology Co., Ltd.
Founded in 2003 in Guangdong, China, Varnix Technology Co., Ltd. operates over 1,229 m² of SGS-verified production facilities across 10+ high-precision automated assembly, automated wave welding, and continuous burn-in lines. We specialize in ruggedized pure sine wave inverters, DC-DC step-up/down buck-boost converters, rack-mount embedded rectifiers, programmable laboratory power supplies, and intelligent industrial chargers.
Full OEM/ODM Customization
We tailor input voltage windows, output parameters, custom housings, private brand silkscreening, and terminal pinouts to match your precise installation footprint.
100% Full-Load Burn-In
Every single variable power supply and inverter undergoes multi-hour computerized full-load aging tests to catch premature infant mortality defects before export packaging.
Optimized Export Logistics
We provide full documentation for Belize customs clearance at Belize City Port or Big Creek, handling EXW, FOB, CIF, and DDP terms with rapid freight transit via Miami air/sea corridors.
Direct Engineering Support
Eliminate middleman markups. Consult directly with our senior power electronics team for CAD dimensional profiles, circuit protection diagrams, and technical bids.
Frequently Asked Questions by Belize Importers & Contractors
Essential answers regarding tariffs, electrical compatibility, minimum order quantities, and marine tropicalization.
Will these variable power supplies and inverters operate safely on Belize's 110V/220V 60Hz utility grid?
Yes, absolutely. Our switching power supplies, embedded rectifiers, and pure sine wave inverters are calibrated for standard 110VAC/220VAC 60Hz operation as supplied across Belize. In addition, our units incorporate wide-input voltage tolerance ranges (typically 85VAC–264VAC) that actively protect connected electronics from line sags, lightning transients, and voltage spikes common in rural and island installations.
How are shipments managed from the factory to Belize City or Big Creek ports?
We routinely export goods via leading international sea and air freight channels. Shipments destined for Belize commonly route via regional hubs such as Miami (USA) or Panama before arriving at Belize City Port, Port of Big Creek, or Philip S.W. Goldson International Airport (BZE). We support standard Incoterms including EXW, FOB, CIF, and DDP, providing commercial invoices, packing lists, CE/RoHS declarations, and Certificates of Origin for rapid customs processing.
What anti-corrosion protection is implemented for Belize Cayes' marine environments?
Equipment deployed on Ambergris Caye, Caye Caulker, or maritime vessels experiences severe salt airborne corrosion. We provide IP67 waterproof-rated extruded aluminum casings sealed with non-corrosive polyurethane potting epoxy. Internal PCBs undergo automated three-layer conformal acrylic/silicone coating, safeguarding copper traces from fungal growth and oxidation.
What is your Minimum Order Quantity (MOQ) for catalog and customized orders?
For standard catalog inventory—including DC-DC converters, pure sine wave inverters, and benchtop variable DC units—our MOQ starts at just 1 to 5 units, allowing project engineers to sample and field-test before volume rollout. Custom OEM projects featuring bespoke voltage mappings or private branding usually require an MOQ of 50 to 100 units depending on chassis complexity.
Can Varnix variable power supplies handle inductive surge loads like marine refrigeration compressors?
Yes. Our industrial-grade pure sine wave inverters feature an instantaneous 200% surge capacity for up to 5 full seconds. This provides the necessary current headroom to overcome starting rotor locked-currents on inductive loads such as air conditioners, water pumps, and heavy workshop compressors without voltage collapse or nuisance tripping.
