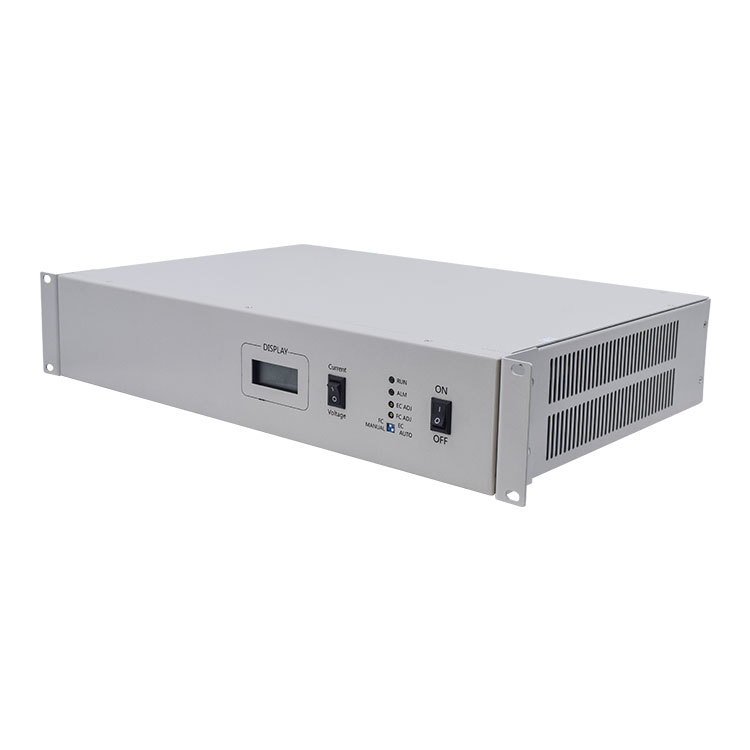

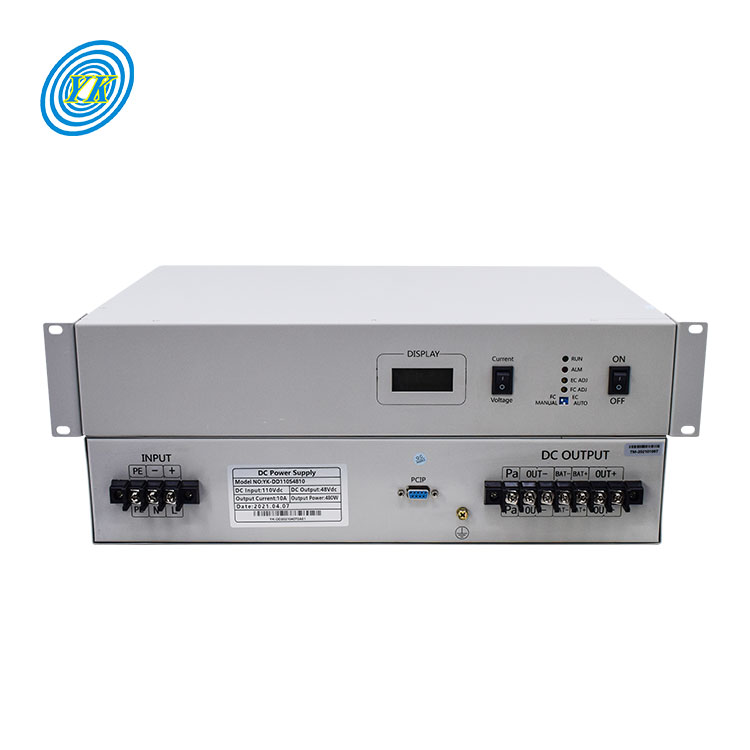

System Rectifier Power 110Vac to 24Vdc 10/20/30/40/50/60/80/100A Switching Power Supply
Product Description
Hot Sale
Features
Input and output complete isolation, ensuring maximum safety and credibility.
Advanced current control mode paired with a stable and reliable circuit topological structure.
Key components are all imported, delivering main technical indexes well above national standards.
All-around comprehensive protection: over/under voltage, over current, short-circuit, and overall temperature protection.
No-master automatic equalized current technology for effortless parallel connection and capacity expansion.
Dual AC and DC input compatibility, fully isolated electrically for secure operations.

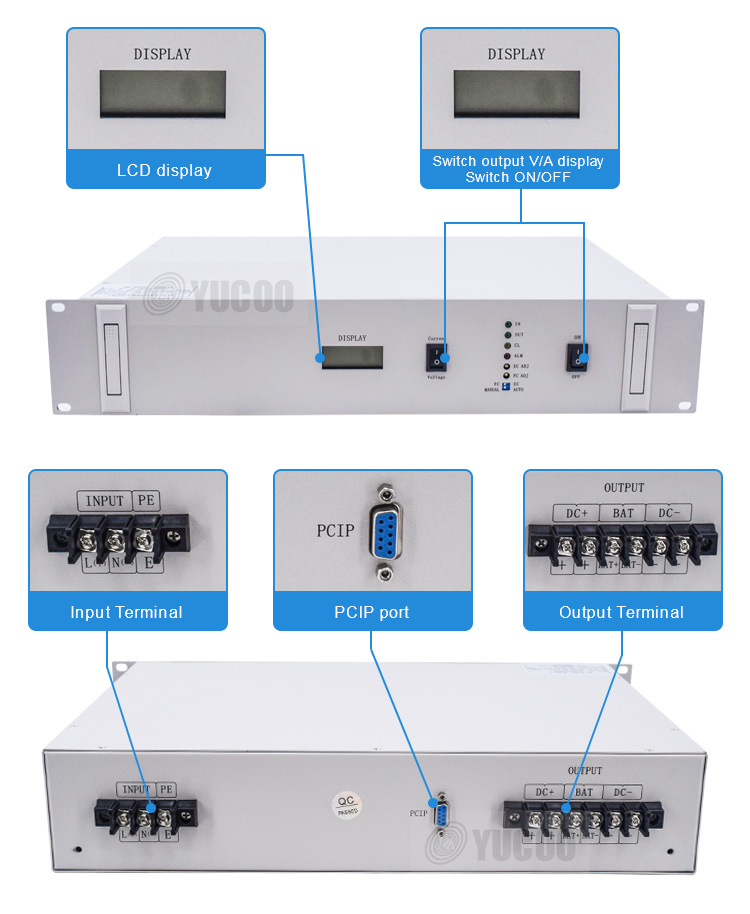

Product Description
Product Parameters
| Model | YK-AD110S2410/20/30...80 |
| AC Input Rated Voltage | 110VAC ±15% |
| Output Rated Voltage | 24VDC |
| Output Voltage Range | 20 - 30VDC |
| Output Rated Current | 10 / 20 / 30 / 40 / 50 / 60 / 80A |
| Load Regulation | ≤0.2% |
| Power Grid Regulation | ≤0.1% |
| Degree of Imbalance for Equalized Current | ≤±5% |
| Phone Weighted Noise Voltage | ≤2mV (CCITT) |
| Peak-to-Peak Noise | ≤150mV |
| Wide Frequency Noise | ≤50mV |
| Discrete Noise | ≤20mV |
| Efficiency | ≥83% |
| Dynamic Response | 20% ~ 100% step load ≤200; Restoring time ≤100uS |
| Working Temperature | -5 °C ~ 45 °C |
| Cooling Mode | Temperature controlled wind cooling |
| MTBF | 100,000 Hours |
| Weight | 8 KG |
| Dimension | 482 * 88 * 300 mm or 482 * 88 * 350 mm |
Customer Comments
Company Profile
Frequently Asked Questions
What is the input and output voltage specification of this unit?
The unit operates with a rated AC input voltage of 110VAC ±15% and provides a regulated 24VDC output with an adjustable voltage range of 20-30VDC.
Can multiple units be connected in parallel for higher capacity?
Yes, the system adopts no-master automatic equalized current technology with an imbalance degree ≤±5%, making parallel connection smooth and capacity expansion convenient.
What safety protections are integrated into the power supply?
It features complete electrical isolation between input and output, alongside full protections against output over/under voltage, over current, short-circuit, and internal over-temperature conditions.
What are the dimensions, cooling method, and mounting profile?
The unit measures standard 19-inch rack dimensions (482*88*300mm or 482*88*350mm), weighs approximately 8KG, and utilizes intelligent temperature-controlled forced air wind cooling.
What is the reliability rating (MTBF) and overall efficiency?
The power supply delivers an efficiency of ≥83% and has a Mean Time Between Failures (MTBF) rated at 100,000 hours under standard operating conditions (-5°C to 45°C).
