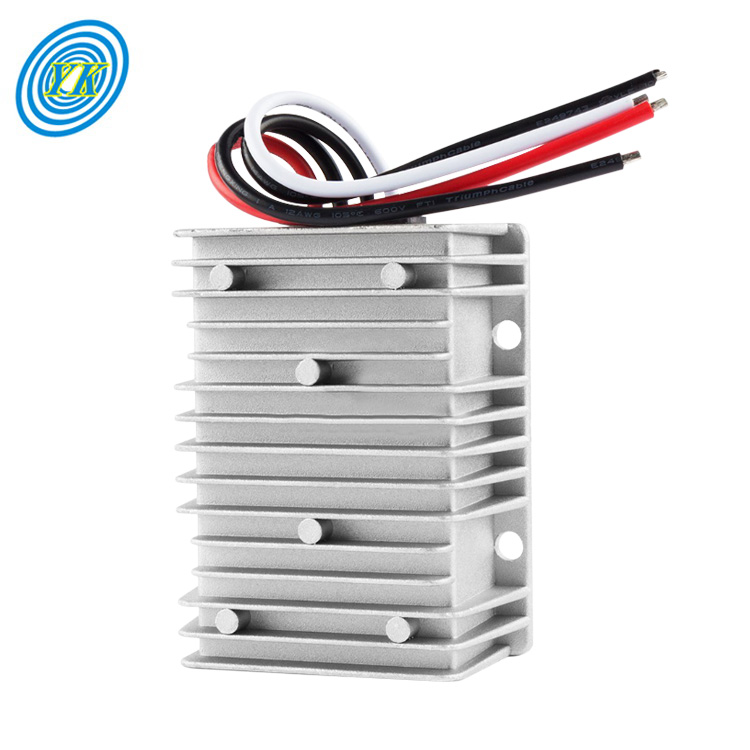

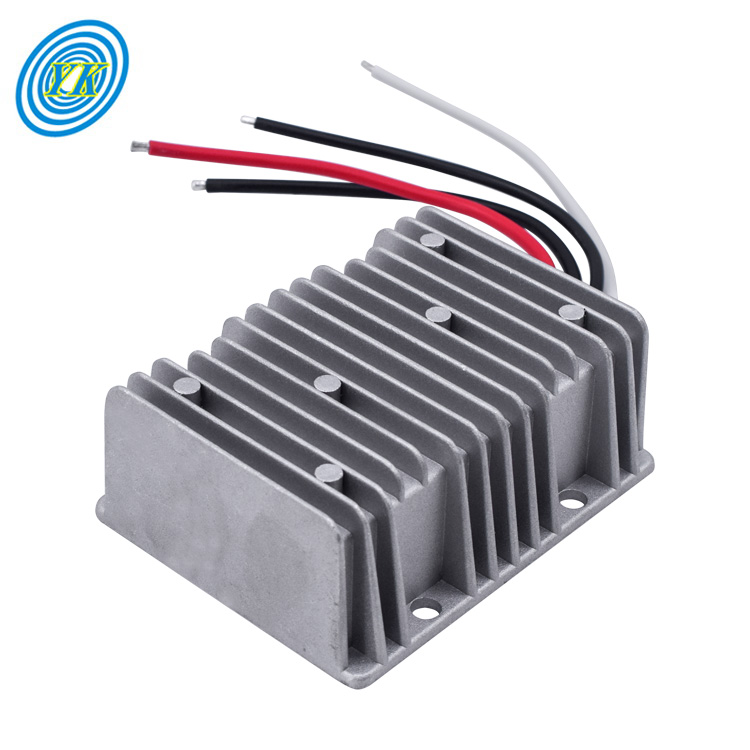

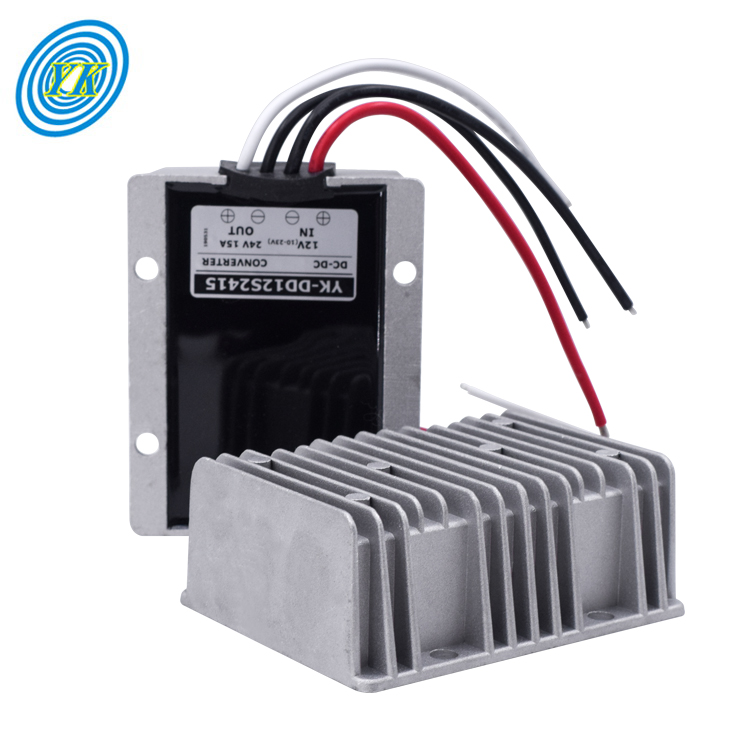

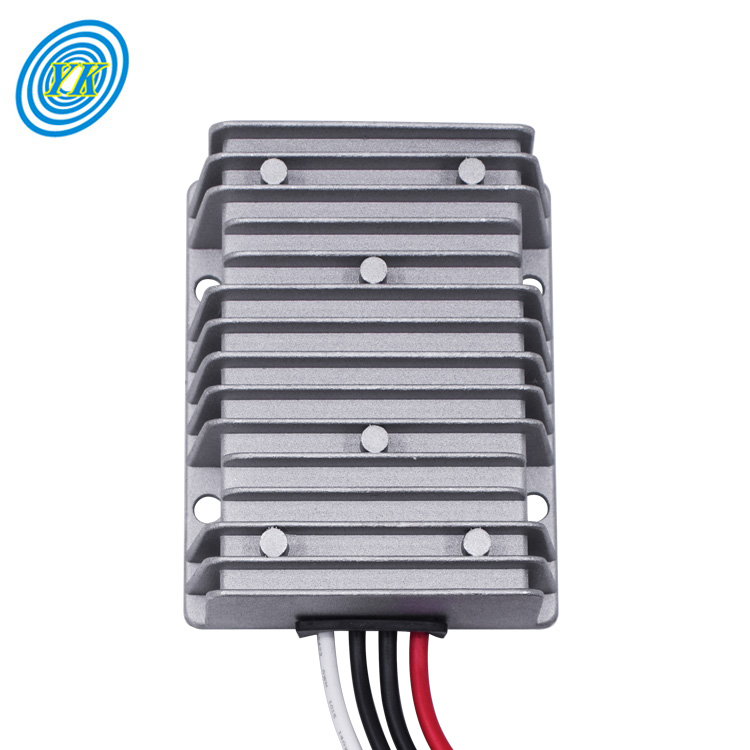

DC Voltage Stabilizer 12V 24V to 13.8V 20A Step up and Step Down Converter
Product Description
Products Description
-
100% full power & stable current output
-
100% Imported components
-
Wide input voltage from 8-40Vdc
-
100% waterproof & anti-shock protection, Ultra compact size, light weight
-
Industry grade step-down converter, efficiency up to 90%
-
Waterproof level: IP68
-
According CE / RoHS design
-
Die-cast aluminum shell, epoxy potting, Cooling by free air convection
-
Protections: Over-current, Over-temperature, and Short-circuit, Auto-recovery when device is back to normal operating
-
Non-Isolated Module
-
1 year warranty
Product Parameters
| Product Name | DC DC Converter |
| Model | YK-DD1224S13.820 |
| Input voltage | 12/24VDC (8-40VDC) |
| Output voltage | 13.8VDC |
| Output current | 20A |
| Power | 276W |
| Efficiency | 94% |
| Working temperature | -35°C - 80°C |
| IP rating | IP68 |
| Weight | 0.5-0.6KG |
| Size | 100*80*38mm |
| Input cable | 13-15cm |
| Application | Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights, motors, pumps and industrial equipment |
Product Gallery
Recommend Products Range
| Model Series | Input-V | Output-V | Output Current |
|---|---|---|---|
| YK-DD1224S5** | 12V/24V | 5v | 3A|5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD24S12** | 24v | 12v | 1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A |
| YK-DD24S13.8** | 24v | 13.8v | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD24S19** | 24v | 19v | 5A|10A|15A |
| YK-DD36S12** | 36v | 12v | 5A|10A|15A|20A|30A|50A|60A |
| YK-DD48S5** | 48v | 5v | 5A|10A|15A|20A |
| YK-DD48S12** | 48v | 12v | 5A|10A|15A|20A|30A|50A|60A |
| YK-DD48S13.8** | 48v | 13.8v | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD48S19** | 48v | 19v | 5A|8A|10A |
| YK-DD48S24** | 48v | 24v | 3A|5A|10A|15A|20A|30A|40A|50A |
| YK-DD60S12** | 60v | 12v | 5A|10A|15A |
| YK-DD60S24** | 60v | 24v | 5A|10A |
| Model Series | Input-V | Output-V | Output Current |
|---|---|---|---|
| YK-DD12S24** | 12v | 24v | 1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A |
| YK-DD12S19** | 12v | 19v | 5A|8A|10A|15A|20A |
| YK-DD12S28** | 12v | 28v | 3A|5A|8A|10A|15A|20A|25A|30A|40A |
| YK-DD12S48** | 12v | 48v | 1A|2A|3A|4A|8A|10A|15A|20A |
| YK-DD24S48** | 24v | 48v | 3A|5A|10A|20A|30A|40A |
| YK-DD24S36** | 24v | 36v | 5A |
| Model Series | Input-V | Output-V | Output Current |
|---|---|---|---|
| YK-DD12S12** | 8-40V | 12V | 1A|2A|3A|5A|6A|10A|15A|20A|25A |
| YK-DD12S13.8** | 8-40V | 13.8v | 3A|5A|10A|15A|20A|25A |
| YK-DD24S24** | 9-40V | 24v | 2A|3A|4A|6A|10A|15A |
