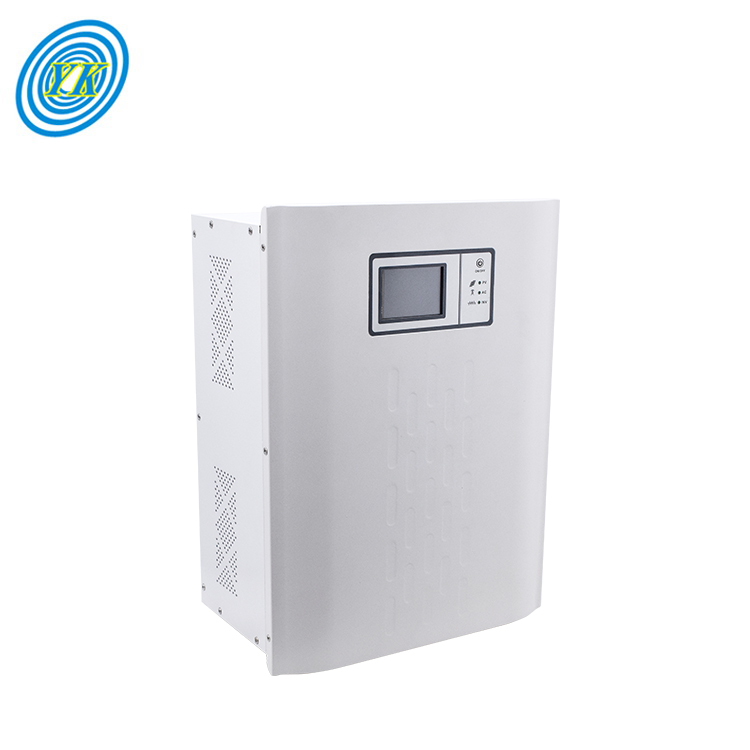

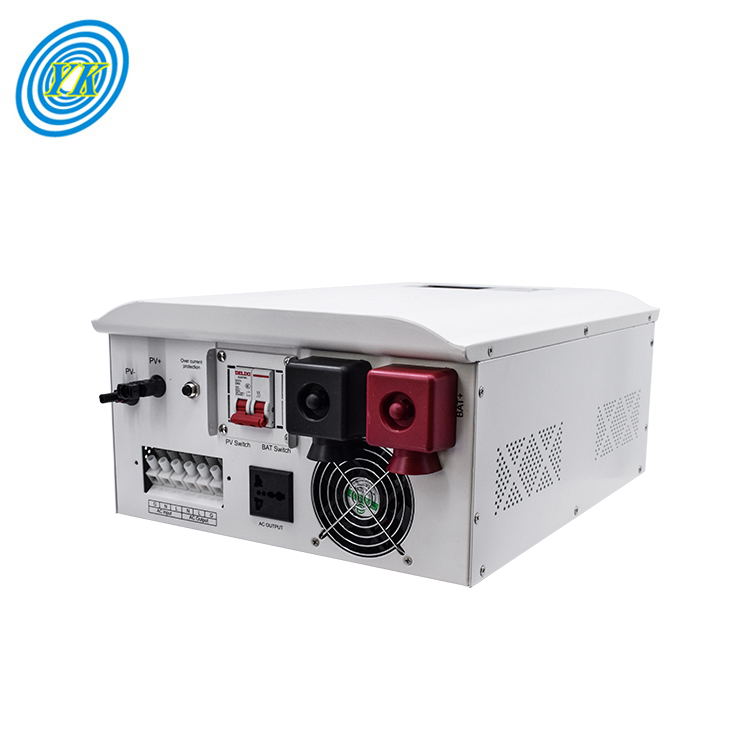

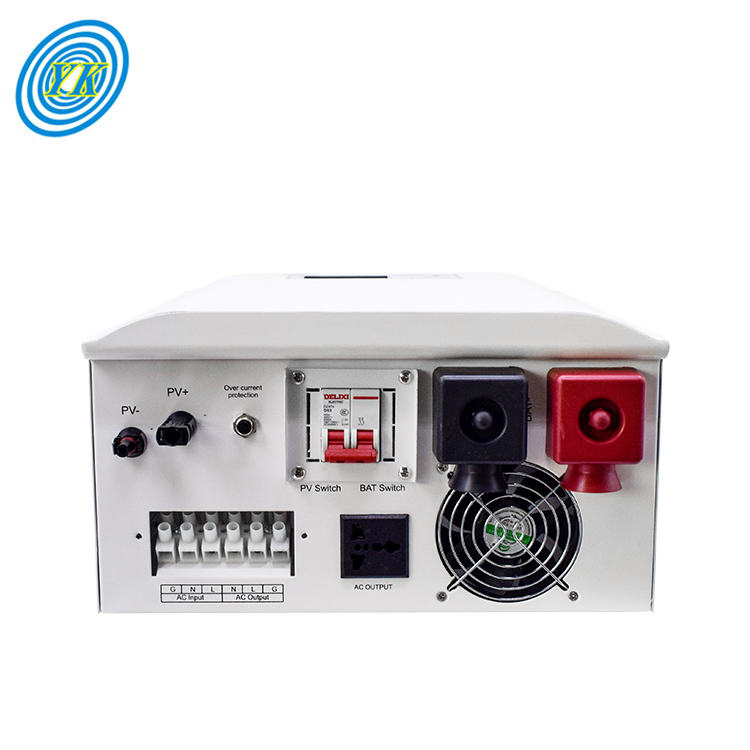

All-in-One Solar Inverter 3KW 48VDC to 110VAC 220VAC 40A LCD Screen Design
Product Description
Product Features
PV Wide Voltage Range Input
Three-Stage Charging Technology
Setting Float Charging Voltage Available
DSP Chip Control, High Precision & High Efficiency
Intelligent MPPT (Maximum Power Point Tracking)
Comprehensive PV & Battery Anti-Reverse, Short Circuit & Overcurrent Protection
Product Parameters
| Specification | YK-IM3000-40 | MT60A | MT100A | MT120A |
|---|---|---|---|---|
| Rated Current | 40A | 60A | 100A | 120A |
| Battery Voltage | 48V | 62A | 101A | 121A |
| Waveform | Pure sine wave | |||
| Charging Mode | MPPT Intelligent Maximum Power Point Tracking Technology | |||
| Charging Type | Three stages: Constant Current Charge, Equal Charging, Floating Charge | |||
| Conversion Time | < 10ms (Typical loads) | |||
| Dynamic Response Recovery Time | ≤ 500us | |||
| No Load Consumption | ≤ 2W | |||
| Protect Functions | Battery overvoltage, undervoltage, overload, short circuit, overtemperature protection, etc. | |||
| Application | Solar Power System Home | |||
| MPPT Operation Voltage | 96V: 145V - 200V | |||
| Operating Temperature | 0℃ - 40℃ (Battery life decreases at ambient temperatures above 25°C) | |||
| Acoustic Noise | < 58dB (Distance to machine 1m) | |||
| Communication Interface | RS485 (Adjustable) | |||
| Size (L*W*H mm) | 502 * 400 * 168 mm | |||
| Weight (KG) | 21 kg | |||
Product Description
Why Choose Us
Certifications
Packaging & Shipping
Frequently Asked Questions (FAQ)
Q What charging technology does this solar system utilize?
The system uses intelligent MPPT (Maximum Power Point Tracking) combined with a 3-stage charging strategy: constant current charging, equal charging, and floating charge, with customizable float voltage settings.
Q What are the transfer and dynamic recovery response times?
The typical conversion time is less than 10 milliseconds (<10ms) under standard loads, with a high-speed dynamic response recovery time of ≤500 microseconds (≤500us).

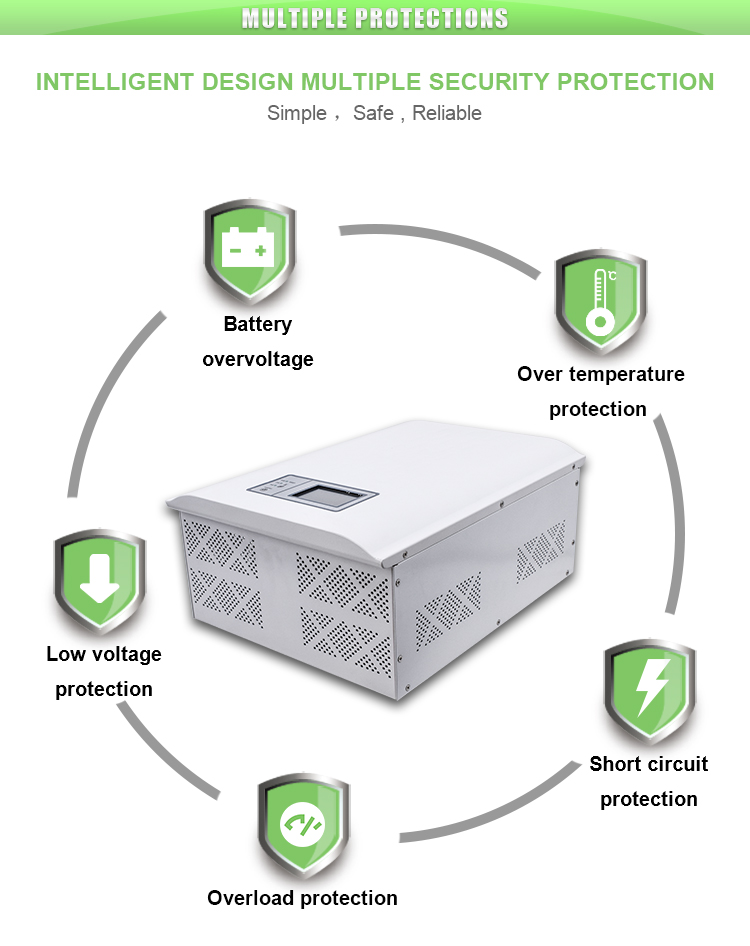

Q What protective mechanisms are integrated into the unit?
The device comes fully equipped with battery overvoltage, undervoltage, overload, short circuit, overtemperature, and reverse connection protections to safeguard your setup.
Q What communication options are available for system monitoring?
The unit supports an adjustable RS485 computer communication interface, facilitating seamless integration with external monitoring systems and computers.
Q What is the optimal operating temperature range?
The unit is designed to operate within 0℃ to 40℃. For optimal performance and battery longevity, maintaining temperatures around or below 25°C is recommended.
