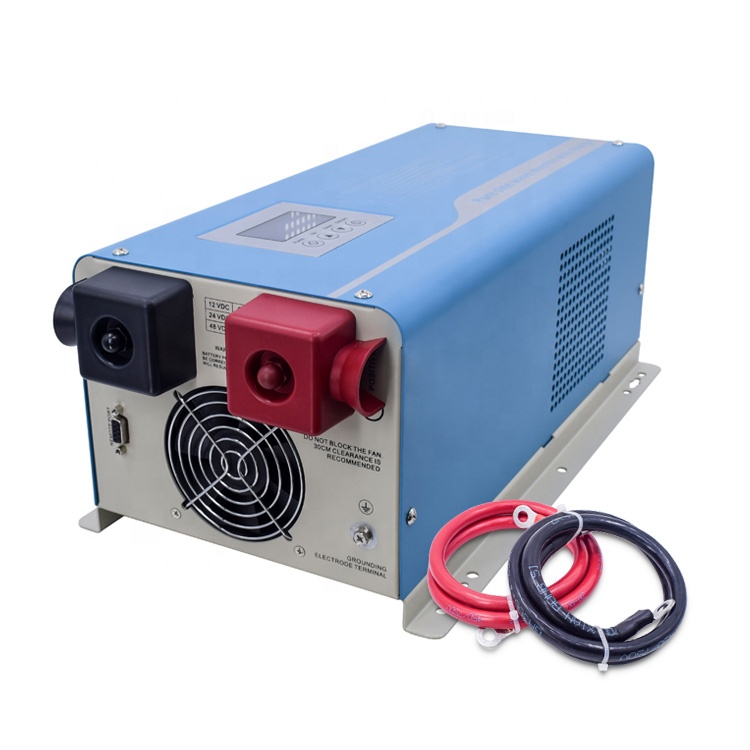

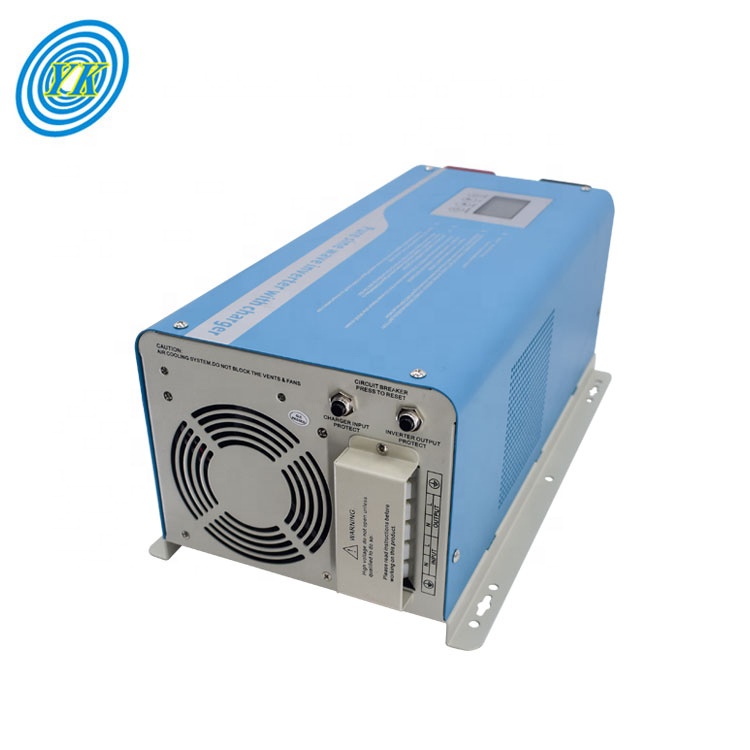

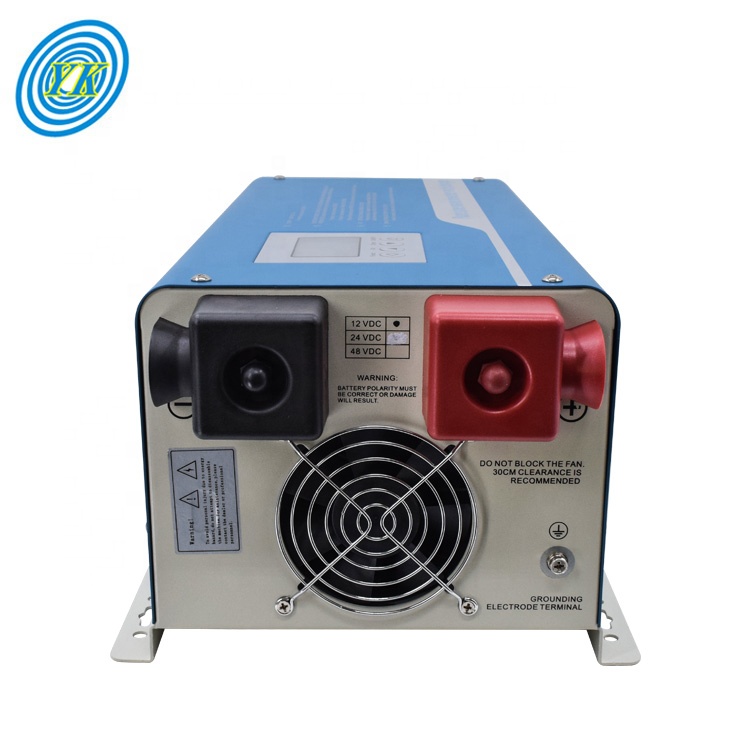

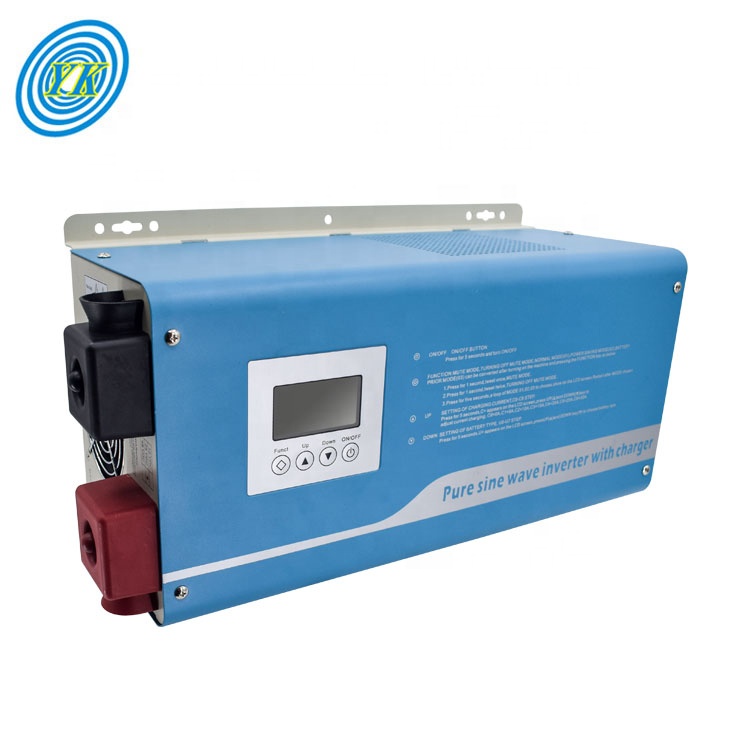

YUCOO Inverter Toroidal Pure Sine Wave Inverter 1500w 12v 220v Inverter
Product Description
Product Features
Double CPU intelligent control technology, providing excellent performance.
RS232 communication port (optional).
Pure sine wave AC output, adaptable to all kinds of electrical loads.
Low-frequency transformer design with isolated input and output.

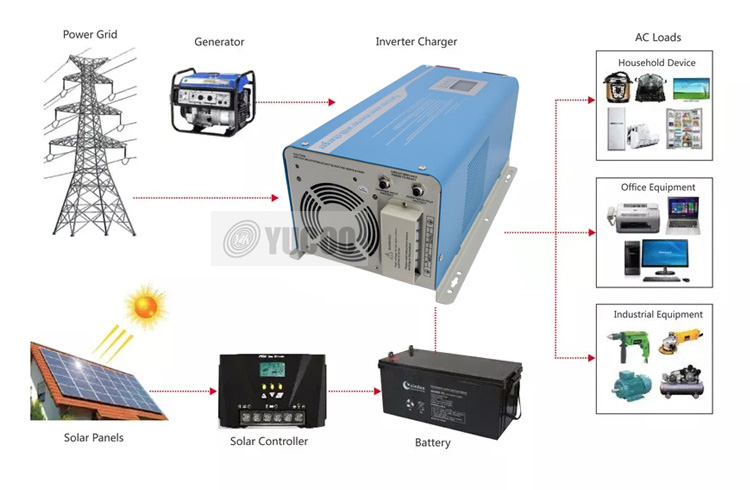

Flexible application with three configurable working modes (Grid mode / Energy-saving mode / Battery mode).
Built-in battery charger (Max 30A) with adjustable charging current and battery type selection.
Intelligent cooling fan control ensuring safe and reliable operation.
Innovative horizontal structure design for easy installation and space-saving.

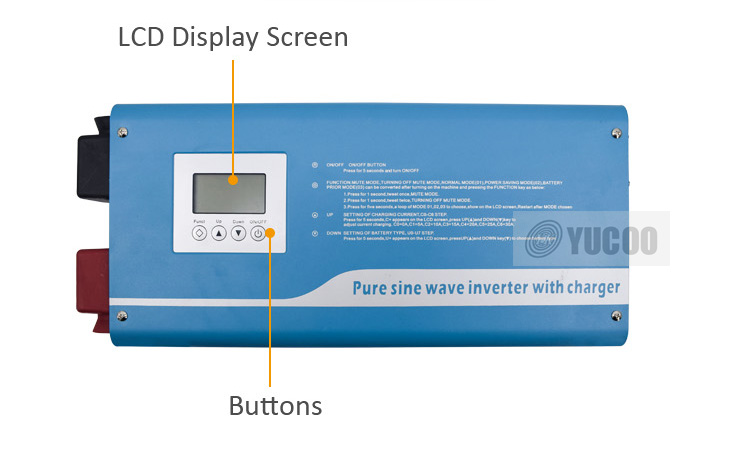

Real-time LCD display showing operational parameters at a glance.
Output overload and short circuit protection with automatic alarm warnings.
Product Specifications
| Model | YK-W9 1000 | YK-W9 2000 | YK-W9 3000 | YK-W9 4000 | YK-W9 5000 | YK-W9 6000 | YK-W9 8000 |
| Rated power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W |
| Input voltage range | DC12V DC24V |
DC24V DC48V |
DC24V DC48V |
DC24V DC48V |
DC24V DC48V DC96V |
DC48V DC96V |
DC48V DC96V |
| Battery charge current | 30A (default), configurable (0A / 5A / 10A / 15A / 20A / 25A / 30A) | ||||||
| Output voltage range | AC120V; AC220V | ||||||
| Output wave form | Pure sine wave | ||||||
| Output switching time | < 10ms (typical load) | ||||||
| Efficiency | > 85% | ||||||
| Protection | Overvoltage protection, low voltage protection, overload protection, short circuit protection, overtemperature protection, etc. | ||||||

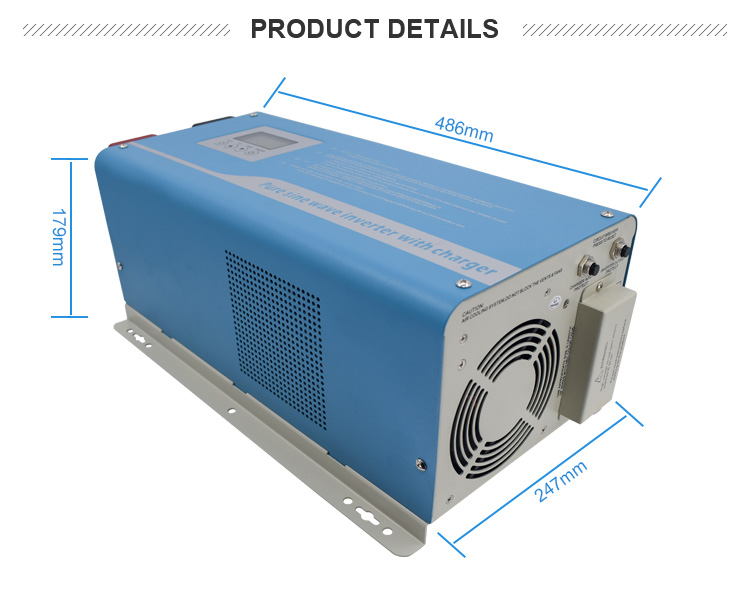

| Dimension (mm) | 486×247×179 | 486×247×179 | 555×307×189 | 555×307×189 | 555×307×189 | 653×332×260 | 653×332×260 |
| Net weight (Kg) | 11 | 14 | 16 | 23 | 26 | 30 | 53 |

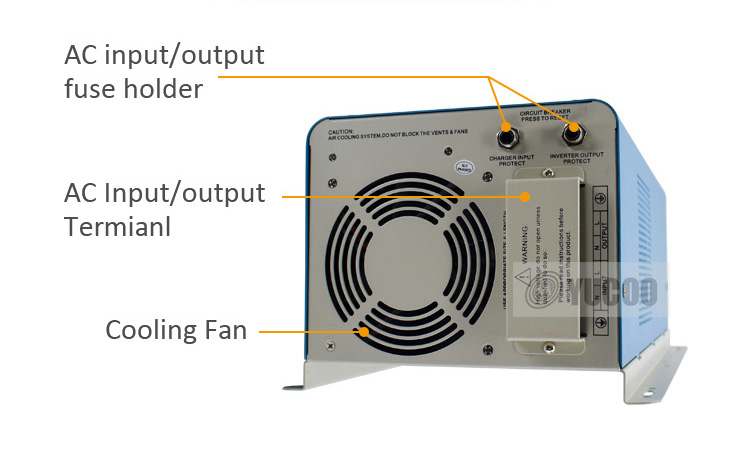

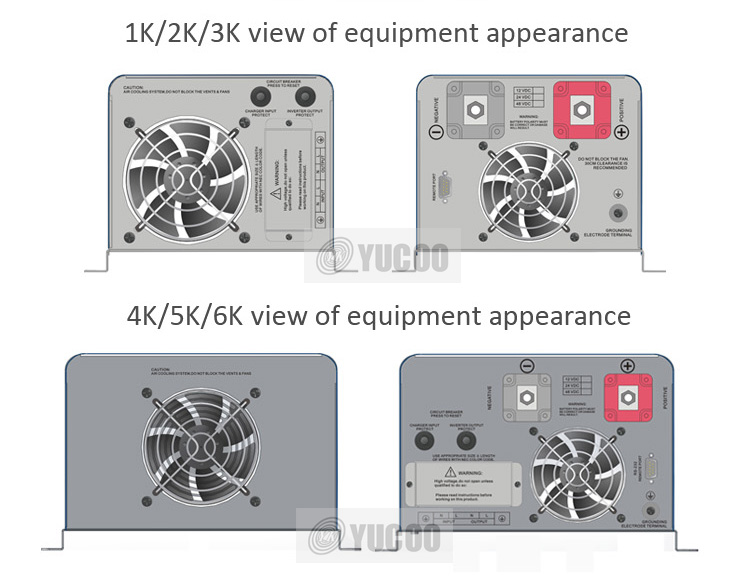

Product Details
Hot Sale
About Us
Frequently Asked Questions (FAQ)
What type of output waveform does the YK-W9 series deliver?
The YK-W9 series outputs a pure sine wave AC waveform, making it safe and compatible with all types of sensitive electronic devices and inductive loads.
Can the charging current and battery type be adjusted?
Yes, the built-in charger allows you to configure both battery type and charging current in selectable levels from 0A up to 30A (0A, 5A, 10A, 15A, 20A, 25A, 30A).
What working modes are supported by this inverter?
The unit supports three user-selectable working modes: Grid Priority Mode, Energy-Saving Mode, and Battery Priority Mode, giving you flexible energy management.
What is the switching transfer time during a power cut?
The switching transfer time is less than 10 milliseconds (< 10ms for typical loads), ensuring uninterruptible operation for connected appliances without sudden shutdowns.
What safety and protective features are integrated?
It features comprehensive protection including overvoltage, low voltage, output overload, output short circuit, and overtemperature protection, backed by audible and visual alarm warnings.
Can the inverter operate with remote communication?
Yes, the unit provides an optional RS232 communication port for remote monitoring, parameter configuration, and centralized data management.
